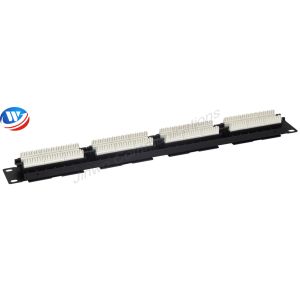

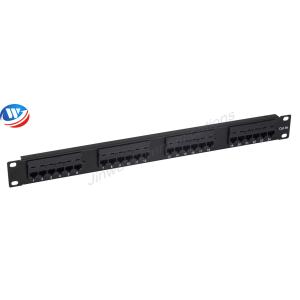

Modularization Design 110 Type IDC 1U UTP Patch Panel 24 Port Cat5e For 19"Cabinet

1. With Cat5e keystone modules used for 19"cabinet ,Complete metalation and reed construction, modularization design
2. IDC: phosphor bronze and silver plating (20-50uinch), suitable diameter 0.4-0.6mm, durability 200 cycles
3. Contact pin: phosphor bronze and gold plating (20-50uinch), mating durability not less than 750 cycles
4. Anti-burn performance: plastic part made from PPO and PC, meeting the international standard
5. Intermediate resistance: no more than 2.5m ohm in normal atmosphere pressure (not including bulk resistor)
6. Insulated resistance: no less than 1,000M ohm in normal atmosphere pressure
7. The intensity of anti-currency: DC 1,000V (AC,700V) No puncture and flash-over phenomenon in one minute. Accord with industry standard
8. Label: clear label to ensure easy to manage
9. Type: unshielded ,24 ports.
10. Standard: designed by international ISO/IEC11801 and TIA/EIA568

1. With Cat5e keystone modules used for 19"cabinet ,Complete metalation and reedconstruction, modularization design

2. IDC:phosphor bronze and silver plating (20-50uinch), suitable diameter 0.4-0.6mm,durability 200 cycles

3. Contactpin: phosphor bronze and gold plating (20-50uinch), mating durability not lessthan 750 cycles

4. Anti-burnperformance: plastic part made from PPO and PC, meeting the internationalstandard

5. Intermediateresistance: no more than 2.5m ohm in normal atmosphere pressure (not includingbulk resistor)

6. Insulatedresistance: no less than 1,000M ohm in normal atmosphere pressure

7. Theintensity of anti-currency: DC 1,000V (AC,700V) Nopuncture and flash-over phenomenon in one minute. Accord with industry standard

8. Label:clear label to ensure easy to manage

9. Type:shielded and unshielded

10. Standard:designed by international ISO/IEC11801 and TIA/EIA568

11.Adoptspecial IDC,suitable for use both LSA insertion tools and 110 type impact tools,180wire termination.

12. toollesskeystone modules.

  Cixi Jinwo Communications Equipment Co.,Ltd.Is the professional manufacturer of Cable and Wires,network and communication equipment and accessories system in Cixi China.

We have over 8 year's experience in development:Network Cabinet,Face Plate,Keystone Jack,Patch Panel,Network Crimper&Cutter Tools,Network Cable Tester,Fiber Optic Terminal Box,Coaxial Cable,LSA modular,Surface Box,Speaker Cable,ADSL Modm Splitter,Telephone Accessories,Distribution Box,Cable and so on... The products have various standard testing and certiciate:ISO,UL,CE,etc.The factory covers 8000m2 and has more than 100 employees,highly skilled engineers,designers.As and OEM and ODM manufacturer.

  We have professional technician team all in this area, welcome customers from all over the world visit our website, and inform us if you have any needs, we are looking forward to give you good services!
