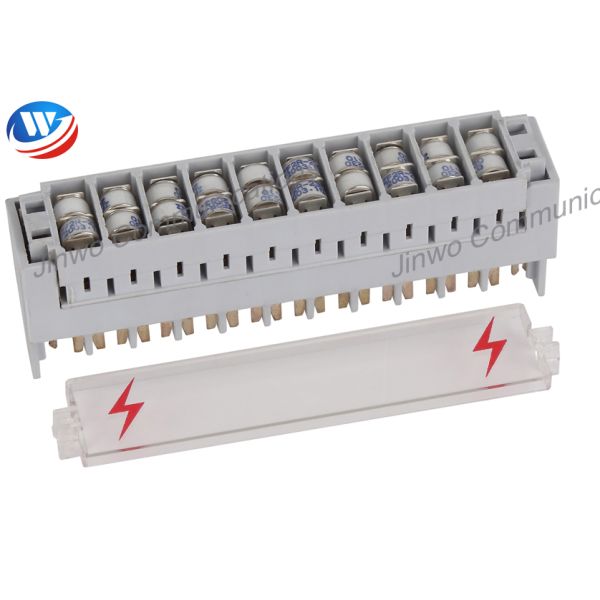

10 Pairs LSA Plus Module 2 Pole Gas Tube Surge Arrester

10 Pairs 2 Pole Gas Tube Arrester LSA Plus Module Overvoltage Protection
Quick Detail:

1, Material: PBT or ABS(UL94V-0)
2, Contact: Phosphor Bronze
3, Silver Plating: 0.5 um1.25 um5 um
4, Can be installed on krone type terminal block
5, With 2pole arrester or 3 pole arrester,can be with duct cover.
6. 8Pair protection magazine,10Pair protection magazine,krone single pair protector,5pin lightning protector,various type on option.
7, 100% test passed,arrester voltage usually for 230V,it can be on your requirement.

Specifications :

Mechanical Performance	Plastic material: ABS&PBT(UL94V-0)
	Contact material: Phosphor Bronze.
	Surface Plating Silver(0.5um-5um)
	Earth bar: Phosphor Bronze.Surface Plating nickel
Environment Characteristic	Storage Tempreture: 40 to 70°C
	Operating Temperature : 10 to 60°C
	Relative Humidity: 95%, noncondition
Electrical Performance	Insulation resistance: 1000 Mohms minimum
	Contact resistance :5 mohms maximum
	Dielectric intensity: 1200V DC 60s can't spark over and haven't fly arc
