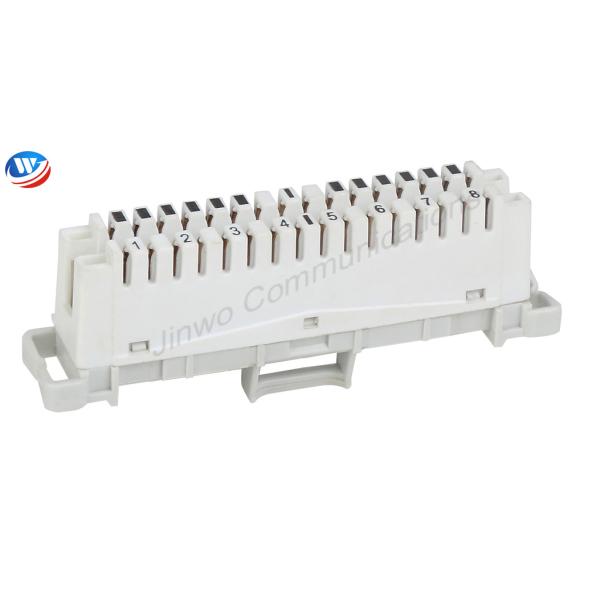

Telecom PBT LSA Plus Module 8 Pairs Krone Disconnection Plug

Product Categories

Cixi Jinwo Communications Equipment Co., Ltd.

Contact Now

Name: Telecom PBT LSA Plus Module 8 Pairs Krone Disconnection Plug
Brand: JINWO
Price: 1 USD

Add to Cart

For Telecom ABS / PBT Silver Coated Krone LSA Module 8 Pairs Krone Disconnection Module

Quick Detail:

1. Material: PBT or ABS(UL94V-0)

2. Contact: Phosphor Bronze

3. Silver Plating: 0.5 um1.25 um5 um

4. Can be installed on krone type stainless steel back mount frames

5. Available with 50pair block tag and 100pair block tag.

6. for mounting on MDF,racks,profile bracket,indoor and outdoor distribution box,cross connection cabinets.

Applications:

High speed LAN and WAN systems,used to connect the Telecom and Data wires with punch down tools.

Specifications :

Mechanical Performance	Insertion force : 40~75N
	Pull Out Force : F≥25N(axial) F≥7.5N(radial)
	IDC Life : 200 times(20-26 AWG Solid wire) minimum
	Copper Conductor Diameter: Φ0.4~Φ0.8(mm)
Environment Characteristic	Storage Tempreture: 40 to 70°C
	Operating Temperature : 10 to 60°C
	Relative Humidity: 95%, noncondition
Electrical Performance	Insulation resistance: 1000 Mohms minimum
	Contact resistance :7 mohms maximum
	Dielectric intensity: AC 1000 Vrms 50Hz or 60Hz in 60s

Silver Coated Krone LSA Module 8 Pairs , ABS / PBT Krone Connection Module For Telecom 0
